post pictures of your flow indicator

zachjowi · 08-04-2005, 08:24 PM

Does anyone have any pictures of a flow indicator? I am looking for plans to make one.

Tommy_86 · 08-05-2005, 02:42 AM

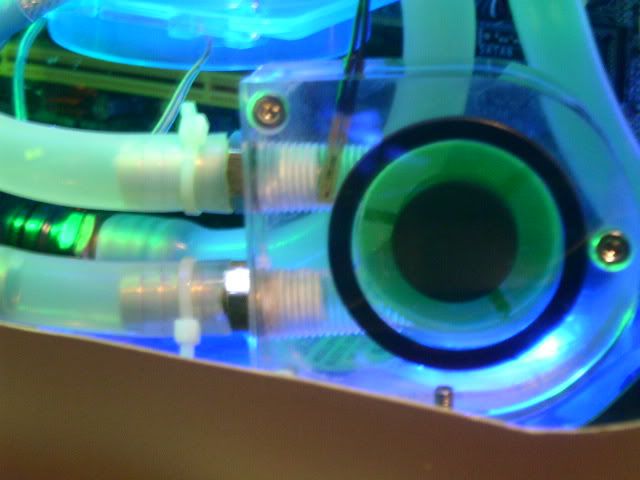

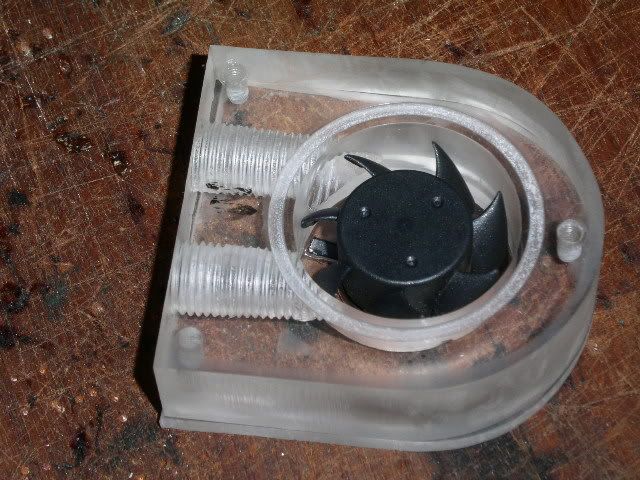

here is some pics at my flow indikator made of some acrylic and a old fan

zachjowi · 08-05-2005, 07:02 AM

Quote:

Originally Posted by Tommy_86

here is some pics at my flow indikator made of some acrylic and a old fan

what size of fan was that?

Tommy_86 · 08-05-2005, 09:15 AM

It is a 60mm fan

bikr · 08-05-2005, 12:27 PM

that is the sweetest thing i've ever seen.

Mathelo · 08-05-2005, 12:47 PM

At last! A quiet Delta fan!

starbuck3733t · 08-05-2005, 01:42 PM

That's pretty darn slick!

zachjowi · 08-06-2005, 02:50 PM

Quote:

Originally Posted by Tommy_86

It is a 60mm fan

what are the overall dimensins of the fan enclosure?

maxSaleen · 08-06-2005, 06:37 PM

That is slick. Well done indeed

nexxo · 08-07-2005, 08:16 AM

Do you mean pictures of the flow sensor, or of the flow indication? In some cases they are two different things...

Here is the flow sensor (the lower unit; the upper one is a flow switch which I did not use):

Here built into the res. It can be hooked up to any RPM sensing fan header:

...and here is it's flow indication, "sensed" by Speedfan and displayed via Samurize on a 5" TFT screen in the PC bezel:

zachjowi · 08-09-2005, 09:46 PM

[quote=nexxo]Do you mean pictures of the flow sensor, or of the flow indication? In some cases they are two different things...

I am talking about flow indication

zachjowi · 08-11-2005, 07:45 PM

[/quote]

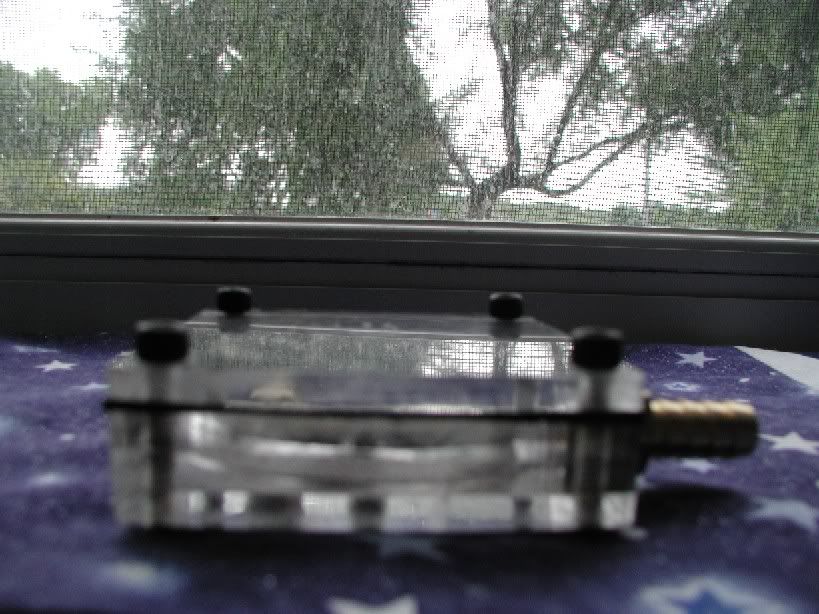

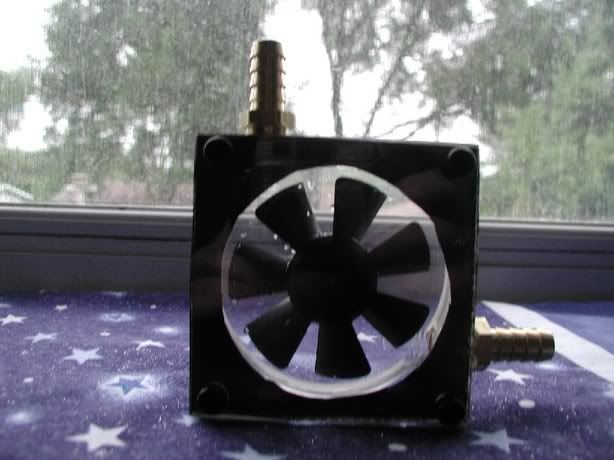

How do you like my flow indicator? It was based off your design.

Tommy_86 · 08-13-2005, 07:46 AM

looks nice

pHaestus · 08-13-2005, 09:40 AM

http://forums.procooling.com/vbb/att...achmentid=4475

replaced this:

http://phaestus.procooling.com/gpi.jpg

brucoman · 08-13-2005, 10:05 AM

lol pH, you coulda cleaned it up a bit

starbuck3733t · 08-29-2005, 07:38 PM

Monster industrial units... are they accurate down to the lower rates that we use in our loops?

brucoman · 08-29-2005, 08:04 PM

.5" & below MAG units in general read to down to .5gpm fine (nice thing about mag flowmeters=same accuarcy from min to max ranges with perhaps a small deviation only)

Goldfinger · 09-16-2005, 04:28 PM

my SolidFlow

[i]

Odin · 01-19-2006, 12:54 PM

Quote:

Originally Posted by Tommy_86

here is some pics at my flow indikator made of some acrylic and a old fan

Hi,

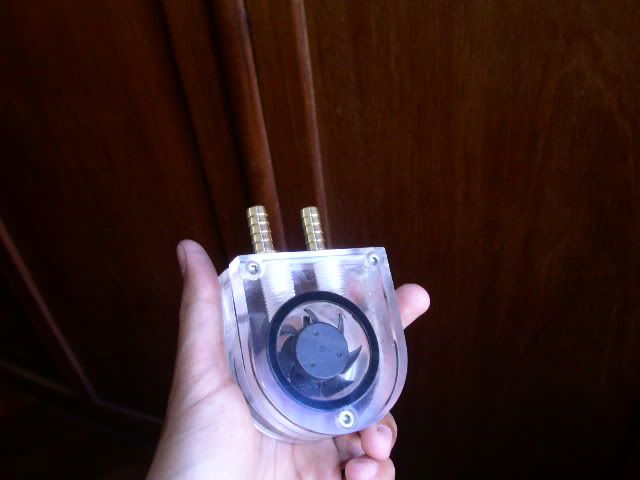

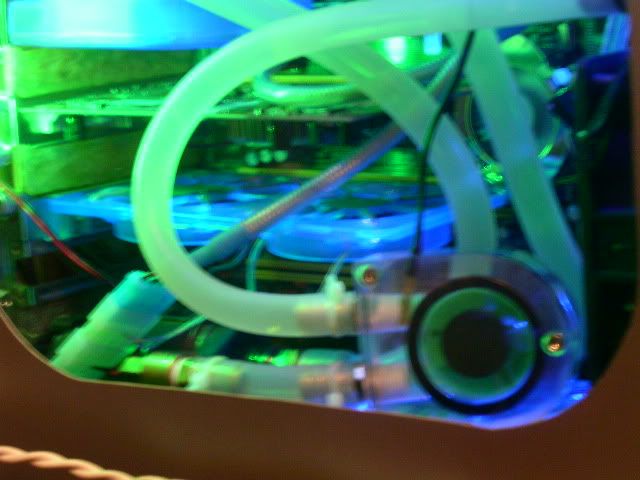

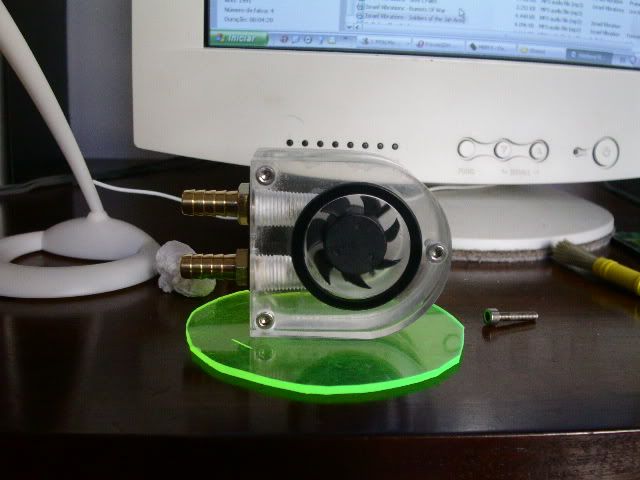

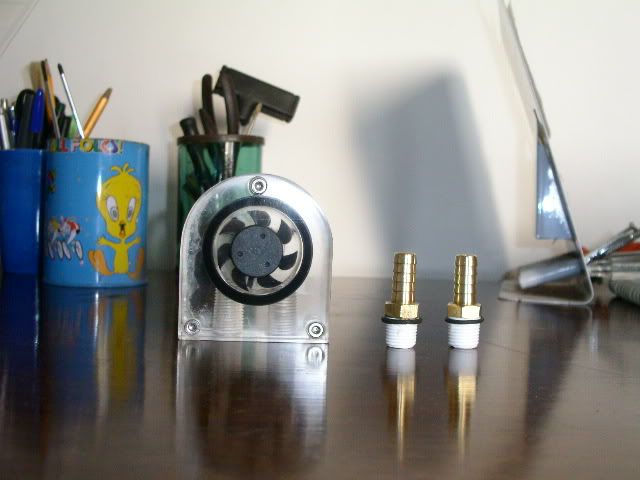

here's my flow indicator, based on yours:

bye!

Tommy_86 · 01-19-2006, 02:22 PM

very very nice!! I had an plan like that one but had no machine to use

zachjowi · 01-19-2006, 07:36 PM

Quote:

Originally Posted by Odin

Hi,

here's my flow indicator, based on yours:

bye!

looks nice what size is the bottom layer of acrylic and the top one also?

Odin · 01-19-2006, 08:47 PM

Thanks Tommy

zachjowi:

bottom layer: 3mm
middle layer: 20mm
top layer: 10mm

dunno this sizes on inches

running on my system:

bye!

zachjowi · 01-19-2006, 10:48 PM

Quote:

Originally Posted by Odin

Thanks Tommy

zachjowi:

bottom layer: 3mm
middle layer: 20mm
top layer: 10mm

dunno this sizes on inches

bye!

how is there a middle layer? wouldn't it leak? Is there just an oto keep the layers sealed or are they glued?

Odin · 01-20-2006, 08:02 AM

Quote:

Originally Posted by zachjowi

how is there a middle layer? wouldn't it leak? Is there just an oto keep the layers sealed or are they glued?

yes, there are 3 layers.

the 20mm layer was drilled with a 38mm OD saw (the fan is a 40mm one), then it was glued on the 3mm one. Is a glue based like chloroform, it melt both parts of acrylic and they glue themselves.

No chance of leaking

bye!

stev · 01-23-2006, 11:43 AM

This is a typical $10 dollar part.

http://www.kartell.it/uk/labware/sch...?IDProdotto=21

http://www.cynmar.com/product_info.p...49b83c0e13f255

http://www.highspeedpc.com/Merchant2...de=FanTempFlow

Here's what the Kartell Paddle Wheel Flow Indicator looks like next to a 120mm fan in the Corsair HydroCool 200.

Stev
