Koolance To The Max - All custom components, 2 loops

Rezistor · 01-11-2005, 09:08 PM

Well, it's been a long time since I originally begain working on modifying my Koolance system, but I believe I've reached 'closure' with this mod. It now has everything that I wanted to implement. Enjoy the pictures, and ask quesions!

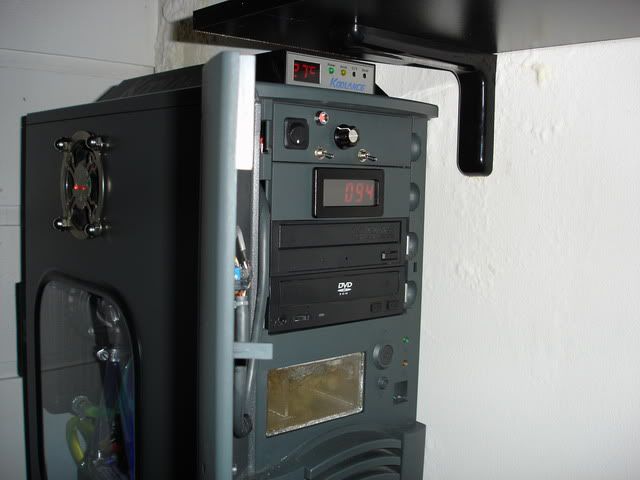

The big display in the front with red leds is showing water flow in the CPU loop that is being measured by the flow meter. The value is a relative percentage, where ~100 represents full flow.

LopeDogg · 01-12-2005, 04:22 AM

OMF sickness!
nice pump you have there buddy.
also the dual loops is sick as f***
hehe thats a modders dream pc u have there.
best looking setup i've seen in a long time.

did u put any UV stuff in the water? how do you get those clear looking tubes to light up blue?

not my thing though, when im done my pc will be fanless *g*

XTATDSM · 01-12-2005, 05:28 AM

looks good bro, how about some temps tho?

killernoodle · 01-12-2005, 09:15 AM

I like how one loop is blue and the other is green, that is pretty cool.

allnighter · 01-12-2005, 09:16 AM

Nice job. Too much plumbing inside the case imo, but overall a very nice job.

Lekta · 01-12-2005, 12:48 PM

Most impressed, that's a fine looking rig. Nice job

What components did you use?

Rezistor · 01-12-2005, 03:54 PM

Thank you all for positive comments, it's been real fun building this PC. Well, let me walk you through the components.

1st Loop: Laing D4 pump + Black Ice Xtreme 2 radiator + MAZE4 CPU waterblock + Proteus Industries 200 Series flow meter (connected to Red Lion DC voltmeter that displays flow as %; the flow switch triggers an alarm (12V piezo buzzer) once flow drops below 40%) + Dual 3 1/2" Floppy Bay reservoir + 1/2" ID Tygon tubing.
The processor is Mobile 2500+ @ 2500MHz, idle 35C / load 40C

2nd Loop: Hydor L20 pump + ThermoChill HE120.1 radiator + MAZE3 GPU block + MAZE3 northbride block + custom reservoir made from electric enclosure box from Home Depot + 3/8" tubing.

The first loop contains FrozenCPU blue UV dye plus some Rit Whitener for the blue color. The second loop contains filtered extracts from a green highlighter for the green color.

01-11-2005, 09:08 PM	#1
Rezistor Cooling Neophyte Join Date: Sep 2002 Location: New York Posts: 12	Koolance To The Max - All custom components, 2 loops Well, it's been a long time since I originally begain working on modifying my Koolance system, but I believe I've reached 'closure' with this mod. It now has everything that I wanted to implement. Enjoy the pictures, and ask quesions! The big display in the front with red leds is showing water flow in the CPU loop that is being measured by the flow meter. The value is a relative percentage, where ~100 represents full flow. __________________ I Am The Glorified Bringer Of Thy Long Due Rest

01-12-2005, 09:15 AM	#4
killernoodle Thermophile Join Date: Sep 2002 Location: Charlotte, NC Posts: 1,014	I like how one loop is blue and the other is green, that is pretty cool. __________________ I have a nice computer.

01-12-2005, 03:54 PM	#7
Rezistor Cooling Neophyte Join Date: Sep 2002 Location: New York Posts: 12	Thank you all for positive comments, it's been real fun building this PC. Well, let me walk you through the components. 1st Loop: Laing D4 pump + Black Ice Xtreme 2 radiator + MAZE4 CPU waterblock + Proteus Industries 200 Series flow meter (connected to Red Lion DC voltmeter that displays flow as %; the flow switch triggers an alarm (12V piezo buzzer) once flow drops below 40%) + Dual 3 1/2" Floppy Bay reservoir + 1/2" ID Tygon tubing. The processor is Mobile 2500+ @ 2500MHz, idle 35C / load 40C 2nd Loop: Hydor L20 pump + ThermoChill HE120.1 radiator + MAZE3 GPU block + MAZE3 northbride block + custom reservoir made from electric enclosure box from Home Depot + 3/8" tubing. The first loop contains FrozenCPU blue UV dye plus some Rit Whitener for the blue color. The second loop contains filtered extracts from a green highlighter for the green color. __________________ I Am The Glorified Bringer Of Thy Long Due Rest

01-12-2005, 04:22 AM	#2
LopeDogg Cooling Neophyte Join Date: Jul 2004 Location: South Africa Posts: 69	OMF sickness! nice pump you have there buddy. also the dual loops is sick as f*** hehe thats a modders dream pc u have there. best looking setup i've seen in a long time. did u put any UV stuff in the water? how do you get those clear looking tubes to light up blue? not my thing though, when im done my pc will be fanless g

01-12-2005, 05:28 AM	#3
XTATDSM Cooling Neophyte Join Date: Nov 2004 Location: UAE Posts: 26	looks good bro, how about some temps tho?

01-12-2005, 09:16 AM	#5
allnighter Cooling Neophyte Join Date: Sep 2004 Location: somewhere in the middle Posts: 61	Nice job. Too much plumbing inside the case imo, but overall a very nice job.

01-12-2005, 12:48 PM	#6
Lekta Cooling Neophyte Join Date: Jan 2005 Location: Brighton. UK Posts: 11	Most impressed, that's a fine looking rig. Nice job What components did you use?
